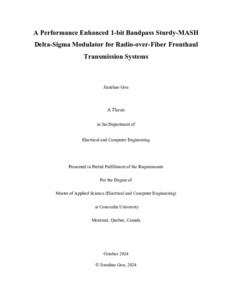

Gou, Jianzhao (2024) A Performance Enhanced 1-bit Bandpass Sturdy-MASH Delta-Sigma Modulator for Radio-over-Fiber Fronthaul Transmission Systems. Masters thesis, Concordia University.
Preview |
Text (application/pdf)
4MBGou_MASc_S2024 (for Spring).pdf - Accepted Version Available under License Spectrum Terms of Access. |
Abstract
Currently, in fronthaul transmission systems of radio access network (RAN), the digitized common public radio interface (CPRI) are being widely used. However, with the development of 5G technology, there are higher demands on signal bandwidth, transmission rate, energy consumption, and other aspects in the fronthaul system. Due to its limited spectrum utilization, high complexity, and large power consumption of the remote radio head (RRH), the digitized CPRI is difficult to satisfy the new requirements of 5G for fronthaul. As an efficient and concise modulation scheme, delta sigma modulator (DSM) can replace multi-bit analog to digital converters (ADCs) with the passive filters at the receiver side of the fronthaul, significantly reducing the complexity of RRHs while meeting the requirements for transmission rate and efficiency. Therefore, DSM has received widespread attention in recent years, and there have been significant developments in new technologies and various structures related to DSM.
In this thesis, an in-depth analysis and comparison of several different structures of 1-bit DSMs are conducted, and an enhanced 1-bit sturdy multi-stage noise-shaping (SMASH) structure for digital fronthaul systems is proposed. The proposed SMASH DSM is based on the traditional SMASH structure, with some structural changes and simplifications made to enhance the modulator's noise shaping capability. In the thesis, a 100-MHz bandwidth 64 quadrature amplitude modulation (64-QAM) orthogonal frequency division multiplexing (OFDM) signal is used as a digital baseband signal and then modulated onto RF carriers with a center frequency of 2.5 GHz. Finally, the bandpass 1-bit DSM modulation is performed. The process is simulated and experimentally verified.
The detailed comparison among the traditional single-stage delta-sigma modulator (SDSM), the traditional MASH and SMASH, and the proposed SMASH is presented in the fronthaul transmission system. The OFDM signal at radio frequency (RF) is quantized to two bits by SDSM/MASH/SMASH ADC, and this digitized signal is transmitted over 20-km single mode fiber (SMF) in a 2-level amplitude non-return-to-zero (NRZ) or 4-level pulse amplitude modulation (PAM4) intensity modulation direct detection (IM-DD) system.
Firstly, it is found that the proposed SMASH DSM has the widest input dynamic range (DR), which means it has better stability, followed by traditional SMASH and MASH, while SDSM performs the worst in terms of input DR.
Then, in the case of fiber transmission systems, the proposed SMASH has better noise suppression performance than the traditional MASH and SMASH schemes. In the directly received system, also known as the electric back-to-back (EBTB) system, the error vector magnitude (EVM) of the proposed SMASH, traditional MASH, and SMASH are -32.56 dB, -29.03 dB, and -29.31 dB, respectively. The proposed one has an around 3.2 dB EVM improvement. And in the IM-DD fiber transmission over 20-km SMF, the EVM are -24.71 dB, -23.93 dB, and -22.36 dB, respectively. The proposed scheme also has an around 2.4 dB EVM improvement compared to the traditional SMASH.
Finally, the comparison result of the two SMASH DSMs is verified in the experiment. In the case of EBTB and optical back-to-back (OBTB) systems, the proposed SMASH has an over 3 dB EVM improvement compared with the traditional SMASH. And in the case of the fiber link, the EVM for proposed SMASH is increased by 2.76 dB and 2.94 dB compared to the traditional one over the 8 km and 20 km fiber, respectively.
| Divisions: | Concordia University > Gina Cody School of Engineering and Computer Science > Electrical and Computer Engineering |
|---|---|
| Item Type: | Thesis (Masters) |
| Authors: | Gou, Jianzhao |
| Institution: | Concordia University |
| Degree Name: | M.A. Sc. |
| Program: | Electrical and Computer Engineering |
| Date: | 10 October 2024 |
| Thesis Supervisor(s): | Zhang, John Xiupu |
| Keywords: | Fronthual, 1-bit Delta Sigma Modulation, Radio over Fiber System |
| ID Code: | 994762 |
| Deposited By: | Jianzhao Gou |
| Deposited On: | 17 Jun 2025 17:14 |
| Last Modified: | 17 Jun 2025 17:14 |
References:
[1] A. Dogra, R. K. Jha, and S. Jain, “A Survey on Beyond 5G Network With the Advent of 6G: Architecture and Emerging Technologies,” IEEE Access, vol. 9, pp. 67512–67547, 2021, doi: 10.1109/ACCESS.2020.3031234.[2] A. Leon-Garcia and I. Widjaja, Communication networks : fundamental concepts and key architectures. McGraw-Hill, 2004. Accessed: Jun. 20, 2024. [Online]. Available: https://thuvienso.hoasen.edu.vn/handle/123456789/9679
[3] A. F. M. Shahen Shah, “A Survey From 1G to 5G Including the Advent of 6G: Architectures, Multiple Access Techniques, and Emerging Technologies,” in 2022 IEEE 12th Annual Computing and Communication Workshop and Conference (CCWC), Las Vegas, NV, USA: IEEE, Jan. 2022, pp. 1117–1123. doi: 10.1109/CCWC54503.2022.9720781.
[4] B. B.s and S. Azeem, “A survey on increasing the capacity of 5G Fronthaul systems using RoF,” Optical Fiber Technology, vol. 74, p. 103078, Dec. 2022, doi: 10.1016/j.yofte.2022.103078.
[5] P. Rani, “Comparative Study of Different Generations of Mobile Network,” in Cybersecurity and Evolutionary Data Engineering, R. Jain, C. M. Travieso, and S. Kumar, Eds., Singapore: Springer Nature, 2023, pp. 171–177. doi: 10.1007/978-981-99-5080-5_15.
[6] R. Muthalagu, “Literature Survey for Transceiver Design in MIMO and OFDM Systems.,” J. Commun., vol. 13, no. 2, pp. 45–59, 2018.
[7] C. Xing, Z. Fei, Y. Zhou, and Z. Pan, “Matrix-field water-filling architecture for MIMO transceiver designs with mixed power constraints,” in 2015 IEEE 26th Annual International Symposium on Personal, Indoor, and Mobile Radio Communications (PIMRC), Aug. 2015, pp. 392–396. doi: 10.1109/PIMRC.2015.7343330.
[8] M. Jaber, M. A. Imran, R. Tafazolli, and A. Tukmanov, “5G Backhaul Challenges and Emerging Research Directions: A Survey,” IEEE Access, vol. 4, pp. 1743–1766, 2016, doi: 10.1109/ACCESS.2016.2556011.
[9] B. M. Shah, M. Murtaza, and M. Raza, “Comparison of 4G and 5G Cellular Network Architecture and Proposing of 6G, a new era of AI,” in 2020 5th International Conference on Innovative Technologies in Intelligent Systems and Industrial Applications (CITISIA), Sydney, Australia: IEEE, Nov. 2020, pp. 1–10. doi: 10.1109/CITISIA50690.2020.9371846.
[10] M. Peng, Y. Sun, X. Li, Z. Mao, and C. Wang, “Recent Advances in Cloud Radio Access Networks: System Architectures, Key Techniques, and Open Issues,” IEEE Commun. Surv. Tutorials, vol. 18, no. 3, pp. 2282–2308, 2016, doi: 10.1109/COMST.2016.2548658.
[11] K. Zeb, X. Zhang, and Z. Lu, “High Capacity Mode Division Multiplexing Based MIMO Enabled All-Optical Analog Millimeter-Wave Over Fiber Fronthaul Architecture for 5G and Beyond,” IEEE Access, vol. 7, pp. 89522–89533, 2019, doi: 10.1109/ACCESS.2019.2926276.
[12] D. H. Hailu, B. G. Gebrehaweria, S. H. Kebede, G. G. Lema, and G. T. Tesfamariam, “Mobile fronthaul transport options in C-RAN and emerging research directions: A comprehensive study,” Optical Switching and Networking, vol. 30, pp. 40–52, Nov. 2018, doi: 10.1016/j.osn.2018.06.003.
[13] M. Peng, C. Wang, V. Lau, and H. V. Poor, “Fronthaul-constrained cloud radio access networks: insights and challenges,” IEEE Wireless Commun., vol. 22, no. 2, pp. 152–160, Apr. 2015, doi: 10.1109/MWC.2015.7096298.
[14] S. R. Abdollahi, H. S. Al-Raweshidy, S. M. Fakhraie, and R. Nilavalan, “Digital Radio over Fibre for Future Broadband Wireless Access Network Solution,” in 2010 6th International Conference on Wireless and Mobile Communications, Sep. 2010, pp. 504–508. doi: 10.1109/ICWMC.2010.32.
[15] S. Hori et al., “A digital radio-over-fiber downlink system based on envelope delta-sigma modulation for multi-band/mode operation,” in 2016 IEEE MTT-S International Microwave Symposium (IMS), San Francisco, CA: IEEE, May 2016, pp. 1–4. doi: 10.1109/MWSYM.2016.7539965.
[16] A. Checko et al., “Cloud RAN for Mobile Networks—A Technology Overview,” IEEE Communications Surveys & Tutorials, vol. 17, no. 1, pp. 405–426, 2015, doi: 10.1109/COMST.2014.2355255.
[17] A. Pizzinat, P. Chanclou, F. Saliou, and T. Diallo, “Things You Should Know About Fronthaul,” Journal of Lightwave Technology, vol. 33, no. 5, pp. 1077–1083, Mar. 2015, doi: 10.1109/JLT.2014.2382872.
[18] J. Wang et al., “Digital Mobile Fronthaul Based on Delta–Sigma Modulation for 32 LTE Carrier Aggregation and FBMC Signals,” J. Opt. Commun. Netw., JOCN, vol. 9, no. 2, pp. A233–A244, Feb. 2017, doi: 10.1364/JOCN.9.00A233.
[19] T. Pfeiffer, “Next generation mobile fronthaul and midhaul architectures [Invited],” Journal of Optical Communications and Networking, vol. 7, no. 11, pp. B38–B45, Nov. 2015, doi: 10.1364/JOCN.7.000B38.
[20] J. Shi, J. Liu, L. Zhang, L. Zhao, W. Zhou, and J. Yu, “Digital Mobile Fronthaul Based on Delta-Sigma Modulation and Chirp-Managed Signal Transmission,” Journal of Lightwave Technology, vol. 41, no. 20, pp. 6521–6532, Oct. 2023, doi: 10.1109/JLT.2023.3289528.
[21] W. Tan, A. Xu, Z. Luo, X. Wang, and F. Li, “Digital mobile fronthaul based on noise-coupling sturdy-multistage noise-shaping modulator,” Optics & Laser Technology, vol. 168, p. 109999, Jan. 2024, doi: 10.1016/j.optlastec.2023.109999.
[22] X. Yang et al., “NTF-Improved Delta-Sigma Modulation Supported 65536 QAM Signal for Mobile Fronthaul,” Journal of Lightwave Technology, vol. 42, no. 2, pp. 513–522, Jan. 2024, doi: 10.1109/JLT.2023.3319691.
[23] J. G. Proakis and M. Salehi, Digital communications. McGraw-Hill, 2008. Accessed: Sep. 09, 2024. [Online]. Available: https://thuvienso.hoasen.edu.vn/handle/123456789/10005
[24] “How Error Vector Magnitude (EVM) Measurement Improves Your System-Level Performance | Analog Devices.” Accessed: Sep. 09, 2024. [Online]. Available: https://www.analog.com/en/resources/technical-articles/how-evm-measurement-improves-system-level-performance.html
[25] J. Speidel, “Multicarrier Modulation and OFDM,” in Introduction to Digital Communications, J. Speidel, Ed., Cham: Springer International Publishing, 2021, pp. 103–117. doi: 10.1007/978-3-030-67357-4_7.
[26] Y. S. Cho, J. Kim, W. Y. Yang, and C. G. Kang, MIMO-OFDM Wireless Communications with MATLAB. John Wiley & Sons, 2010.
[27] A. F. Molisch, Wireless Communications. John Wiley & Sons, 2012.
[28] J. M. de la Rosa, Sigma-Delta Converters: Practical Design Guide. John Wiley & Sons, 2018.
[29] S. Pavan, R. Schreier, and G. C. Temes, Understanding Delta-Sigma Data Converters. John Wiley & Sons, 2017.
[30] N. Maghari, S. Kwon, and U.-K. Moon, “74 dB SNDR Multi-Loop Sturdy-MASH Delta-Sigma Modulator Using 35 dB Open-Loop Opamp Gain,” IEEE Journal of Solid-State Circuits, vol. 44, no. 8, pp. 2212–2221, Aug. 2009, doi: 10.1109/JSSC.2009.2022302.
[31] B. Park, C. Han, and N. Maghari, “Correlated Dual-Loop Sturdy MASH Continuous-Time Delta-Sigma Modulators,” IEEE Journal of Solid-State Circuits, vol. 57, no. 10, pp. 2934–2943, Oct. 2022, doi: 10.1109/JSSC.2022.3186079.
[32] L. Zhong et al., “An SNR-improved Transmitter of Delta-sigma Modulation Supported Ultra-High-Order QAM Signal for Fronthaul/WiFi Applications,” Journal of Lightwave Technology, vol. 40, no. 9, pp. 2780–2790, May 2022, doi: 10.1109/JLT.2022.3147059.
[33] E. Janssen and A. van Roermund, “Basics of Sigma-Delta Modulation,” in Look-Ahead Based Sigma-Delta Modulation, E. Janssen and A. van Roermund, Eds., Dordrecht: Springer Netherlands, 2011, pp. 5–28. doi: 10.1007/978-94-007-1387-1_2.
[34] M. Nagahara and Y. Yamamoto, “Frequency Domain Min-Max Optimization of Noise-Shaping Delta-Sigma Modulators,” IEEE Trans. Signal Process., vol. 60, no. 6, pp. 2828–2839, Jun. 2012, doi: 10.1109/TSP.2012.2188522.
[35] B. E. Boser and B. A. Wooley, “The design of sigma-delta modulation analog-to-digital converters,” IEEE Journal of Solid-State Circuits, vol. 23, no. 6, pp. 1298–1308, Dec. 1988, doi: 10.1109/4.90025.
[36] J.-K. Cho, “Low-Voltage, Low-Power, High-Resolution, Broadband Oversampling Analog-To-Digital Conversion,” Ph.D., Stanford University, United States -- California, 2012. Accessed: Sep. 10, 2024. [Online]. Available: https://www.proquest.com/docview/2460651427/abstract/64F0F76DE09B447BPQ/1
[37] S. M. Moussavi and B. H. Leung, “High-order single-stage single-bit oversampling A/D converter stabilized with local feedback loops,” IEEE Transactions on Circuits and Systems II: Analog and Digital Signal Processing, vol. 41, no. 1, pp. 19–25, Jan. 1994, doi: 10.1109/82.275665.
[38] L. Qi, “Low-Power Cascaded Delta-Sigma Modulator for Wideband Telecommunication Applications,” Ph.D., University of Macau, Peoples Rep. of China, 2019. Accessed: Sep. 10, 2024. [Online]. Available: https://www.proquest.com/docview/2390593929/abstract/D6110F3A94B84380PQ/1
[39] Y. Fujimoto, Y. Kanazawa, P. Lo Re, and K. Iizuka, “A 100 MS/s 4 MHz Bandwidth 70 dB SNR \Delta \Sigma ADC in 90 nm CMOS,” IEEE Journal of Solid-State Circuits, vol. 44, no. 6, pp. 1697–1708, Jun. 2009, doi: 10.1109/JSSC.2009.2020458.
[40] C. Jing, T. Li, B. Gao, and M. Gong, “A MASH2-2 Sigma Delta Modulator with NTF Zero Optimization Technique,” in 2022 5th International Conference on Communication Engineering and Technology (ICCET), Feb. 2022, pp. 68–72. doi: 10.1109/ICCET55794.2022.00021.
[41] D. Li, C. Fei, Q. Zhang, Y. Li, and Y.-T. Yang, “Mismatch errors randomization for multi-bit DAC in sigma-delta modulators based on butterfly-type network,” Microelectronics Journal, vol. 94, p. 104651, Dec. 2019, doi: 10.1016/j.mejo.2019.104651.
[42] “5G System Overview.” Accessed: Sep. 11, 2024. [Online]. Available: https://www.3gpp.org/technologies/5g-system-overview
[43] “5G | ShareTechnote.” Accessed: Sep. 11, 2024. [Online]. Available: https://www.sharetechnote.com/html/5G/5G_FR_Bandwidth.html#38_101_1_Table_5_1_1
[44] N. Maghari and U.-K. Moon, “Multi-loop efficient sturdy MASH delta-sigma modulators,” in 2008 IEEE International Symposium on Circuits and Systems (ISCAS), May 2008, pp. 1216–1219. doi: 10.1109/ISCAS.2008.4541643.
[45] L. Qi, S.-W. Sin, S.-P. U, and R. P. Martins, “Resolution-enhanced sturdy MASH delta–sigma modulator for wideband low-voltage applications,” Electronics Letters, vol. 51, no. 14, pp. 1061–1063, 2015, doi: 10.1049/el.2015.1655.
[46] J. Flemming, B. Wicht, and P. Witte, “Stability Analysis for Frequency Tunable Bandpass Delta-Sigma ADC Architectures,” in 2023 19th International Conference on Synthesis, Modeling, Analysis and Simulation Methods and Applications to Circuit Design (SMACD), Jul. 2023, pp. 1–4. doi: 10.1109/SMACD58065.2023.10192145.
[47] X. Qin, J. Zhang, L. Qi, S.-W. Sin, R. P. Martins, and G. Wang, “Discrete-Time MASH Delta-Sigma Modulator with Second-Order Digital Noise Coupling for Wideband High-Resolution Applications,” in 2021 IEEE International Symposium on Circuits and Systems (ISCAS), May 2021, pp. 1–5. doi: 10.1109/ISCAS51556.2021.9401651.
[48] A. O. Ucar and F. Gerfers, “Sturdy-MASH Delta-Sigma Modulator with Improved Resolution Using Noise-coupling Multi-bit Quantizer,” in 2022 IEEE 65th International Midwest Symposium on Circuits and Systems (MWSCAS), Aug. 2022, pp. 1–4. doi: 10.1109/MWSCAS54063.2022.9859279.
[49] “IEEE Standards Association,” IEEE Standards Association. Accessed: Sep. 16, 2024. [Online]. Available: https://standards.ieee.org/ieee/802.11/10548/
